Shock absorber piston rods shafts

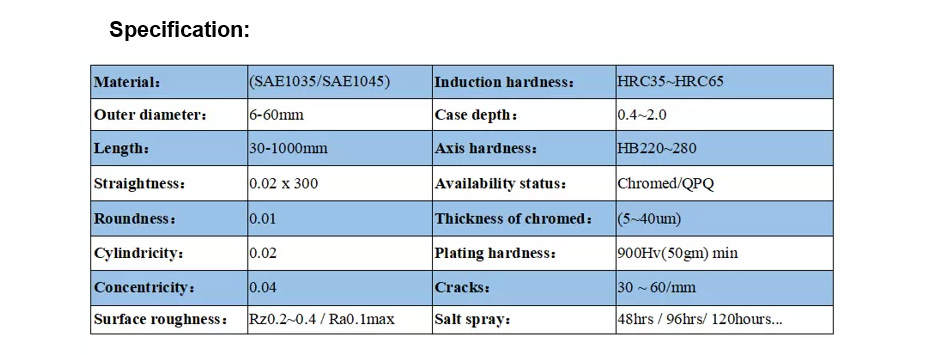

Quick Details
| Material: | (35#,45#,20CrMo,42CrMo, 40Cr,Stainless steel,customized) | ||
| Product name: | Piston rods/Hollow piston rods/Shaft | ||
| Induction hardness: | HRC35~HRC65 | ||
| Outer diameter: | 6-60mm | ||
| Case depth: | 0.4~2.0 | ||
| Length: | 30-1000mm | ||
| Surface hardness: | HB220~280 | ||
| Straightness: | 0.02 x 300 | ||
| Availability status: | Chromed/Nitrided | Roundness: | 0.01 |
| Thickness of chromed: | (5~40um) | Cylindricity: | 0.02 |
| Plating hardness: | 900Hv(50gm) min | Concentricity: | 0.04 |
| Cracks: | 30 ~ 60/mm | Surface roughness: | Rz0.2~0.4 / Ra0.1max |
Product Description

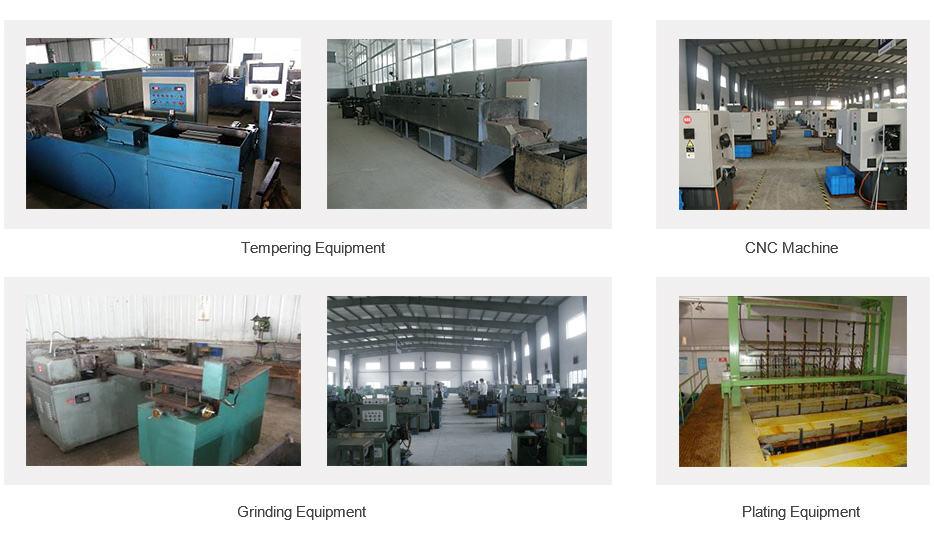

Production Facilities

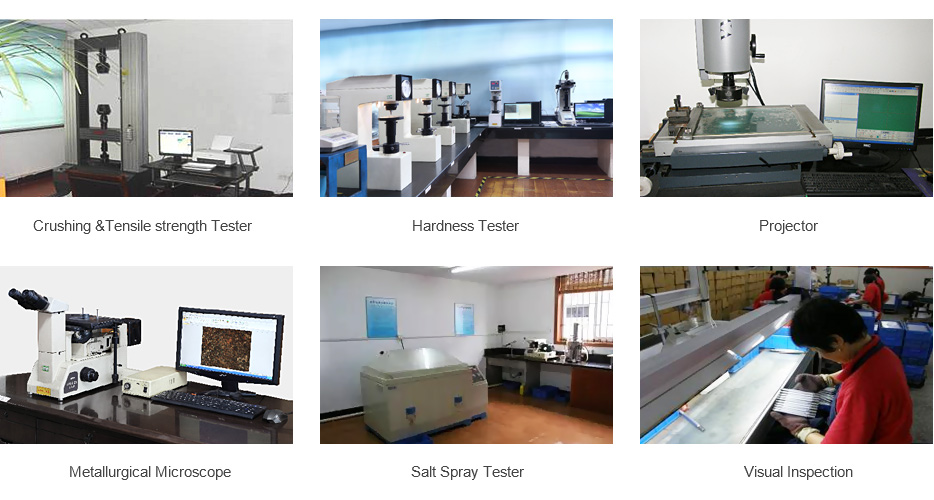

Examination Facilities
Packing & Delivery
Packaging Details ：PCS in one carton, or plastic blister tray, outside wooden pallet or wooden box
Port：NINGBO / SHANGHAI

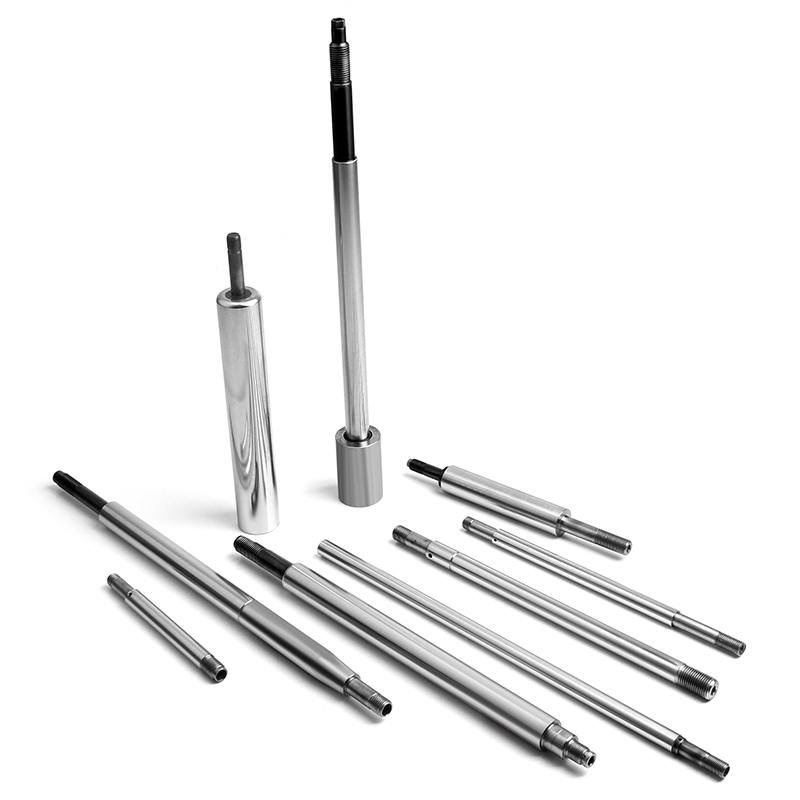

Picture Example:
Related products
FAQ
- Q1: How many days of your delivery?
A: The general delivery is 30 days.
- Q2: What's your main market?
A: We mainly export to Middle East and South Eastern Asia.
- Q3: Are you factory?
A: Yeah, we are.
- Q4: which countries do you export to?
A:America, India,Pakistan, Turkey, and so on.
- Q5: What is your main payment item?
A: T/T and L/C.
